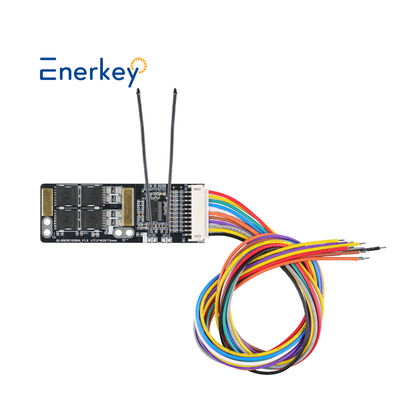

Enerkey Bms 4s 80a Standard LTO BMS 3S 5S 6S 7S 8S 24V Lifepo4 BMS 9S 10S 36V Li-ion BMS for Electronic Vehicles

Merknaam:	Enerkey
Modelnummer:	EK-BM3R10S80A
MOQ:	100pieces
Prijs:	$6.9-$8.1
Verpakking:	Sterk papieren doos +Eva Foam
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

Shenzhen, China

Certificering:

ISO9001/CE/ROHS

Productnaam:

3S tot 10S 80A lithiumbatterij Hardware BMS

Koperen dikte:

Applicatie:

energieopslag in huis

Borddikte:

1,6 mm

Batterijtype:

Li-ion/Lifepo4/Lto/SIB

Toegestane bedieningsspanningsbereik:

0-30V

Nominale ontladingsstroomstroom:

Peak startstroom:

Gebruikt voor:

Beschermingsbord voor lithiumbatterijen

Trefwoorden:

3S-10S GBS

Basismateriaal:

Oppervlakteafwerking:

Loodvrij spuitblik

Productgrootte:

L77,5xB28xD5mm

Gewicht met pakket:

0,1 kg

Levering vermogen:

1000000 stuks per dag

Productomschrijving

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System

Product Description

**Application Areas:**

**Electric Vehicles:** Suitable for electric bicycles, electric motorcycles, electric scooters, etc., providing reliable protection for the lithium battery packs of these vehicles, ensuring stable and safe power during operation, extending battery life, and reducing operating costs.

**Model Toys:** In model airplanes, model cars, and other model toys, it effectively protects the lithium battery packs, preventing battery damage caused by improper operation or abnormal conditions, allowing model enthusiasts to enjoy the fun of model toys with greater peace of mind.

**Model Toys:** Energy Storage System This system can be used in small-scale energy storage systems such as home energy storage and solar energy storage to ensure the safe and stable operation of lithium battery packs and improve the efficiency of energy storage and utilization.

User Guide

Installation Steps

First, confirm that the specifications of the lithium battery pack are consistent with the applicable range of the protection board.

Connect the protection board to the lithium battery pack using the correct polarity and interface, ensuring a secure connection and avoiding loose connections.

After connection, use a multimeter or other tools to check if the connection is correct and if the voltage is normal.

Precautions for Use

Avoid short circuits between the protection board and metal objects to prevent damage.

Regularly check the working status of the protection board. If abnormal heating, odor, or other abnormalities are detected, stop using it immediately and inspect it.

Do not use the protection board in harsh environments such as high temperature, humidity, or corrosive conditions.

After-sales service We provide comprehensive after-sales service. The product enjoys a one-year warranty from the date of purchase. During the warranty period, if there is any quality problem caused by non-human damage, we will replace or repair it for you free of charge. At the same time, our professional customer service team is always ready to answer any questions you may have during use, so that you have no worries.

Enerkey Bms 4s 80a Standard LTO BMS 3S 5S 6S 7S 8S 24V Lifepo4 BMS 9S 10S 36V Li-ion BMS for Electronic Vehicles 0

Enerkey Bms 4s 80a Standard LTO BMS 3S 5S 6S 7S 8S 24V Lifepo4 BMS 9S 10S 36V Li-ion BMS for Electronic Vehicles 1

Enerkey Bms 4s 80a Standard LTO BMS 3S 5S 6S 7S 8S 24V Lifepo4 BMS 9S 10S 36V Li-ion BMS for Electronic Vehicles 2

Enerkey Bms 4s 80a Standard LTO BMS 3S 5S 6S 7S 8S 24V Lifepo4 BMS 9S 10S 36V Li-ion BMS for Electronic Vehicles 3

Technical Parameters

	Item type		Parameters
1	Parameter Overview	Product Model	EK-BM3R10S80A
		Product Size(mm)	L77.5W28T5
		Product Weight(kg)	0.1
		Product Material	FR-4 / Lead-free spray tin
		Applicable battery type	Lifepo4		Li-ion		Lto		SIB
		Applicable battery string	3S - 10S		3S - 10S		3S - 10S		3S - 10S
		Rated discharge current	80A		80A		80A		80A
		Peak starting current	160A		160A		160A		160A
	Item type		Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)
2	Charging protection	Overvoltage protection voltage value	3.65V/1S	3.50V/1S	4.25V/1S	4.05V/1S	2.85V/1S	2.75V/1S	3.95V/1S	3.80V/1S
		Overcurrent value	40A/2S, disconnect charger to recover
		Low temperature value	Charge over-temperature protection 60℃/2S / Release 55℃/2S
		Overtemperature value	Charging low temperature protection -5℃/2S / Release 0℃/2S
3	Discharge protection	Undervoltage protection voltage value	2.30V/1S	2.70V/1S	2.75V/1S	3.0V/1S	1.70V/1S	1.80V/1S	1.50V/1S	2.00V/1S
		①Overcurrent protection value	80A/2S, disconnect load or activate charging
		②Overcurrent protection value	160A/0.5S, disconnect load or activate charging
		Short circuit protection value	260A/128uS, disconnect load or charge activated
		Low temperature value	Discharge over-temperature protection 65℃/2S, release 60℃/2S
		Overtemperature value	Discharge low temperature protection -20℃/2S, release -10℃/2S
4	Others	Standby current consumption	25uA
		Motherboard lock voltage	/

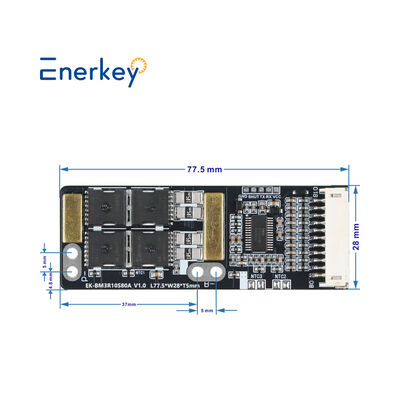

Size $ Packing List

Package included:

1 * BMS

1 * NTC Terminal Cable(Please tell us if you need it with NTC)

1 * Terminal Cable

Enerkey Bms 4s 80a Standard LTO BMS 3S 5S 6S 7S 8S 24V Lifepo4 BMS 9S 10S 36V Li-ion BMS for Electronic Vehicles 4

Wire Diagram

Enerkey Bms 4s 80a Standard LTO BMS 3S 5S 6S 7S 8S 24V Lifepo4 BMS 9S 10S 36V Li-ion BMS for Electronic Vehicles 5

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
